KW
KW | V3 Clubsport Coilover Suspension | GT/GR86 BRZ I & II
KW | V3 Clubsport Coilover Suspension | GT/GR86 BRZ I & II
- Short-term order goods (approx. 7-14 days shipping time)
You will receive €107,23 Guthaben when you purchase this item.
Couldn't load pickup availability

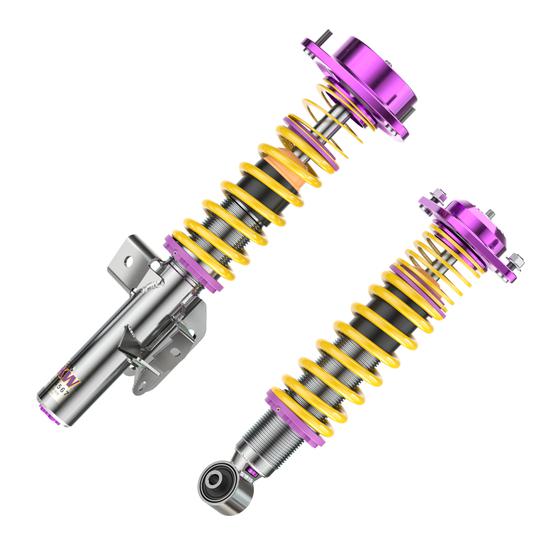

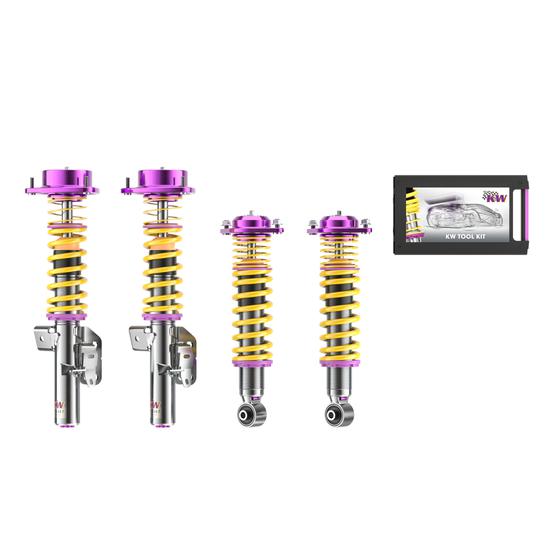

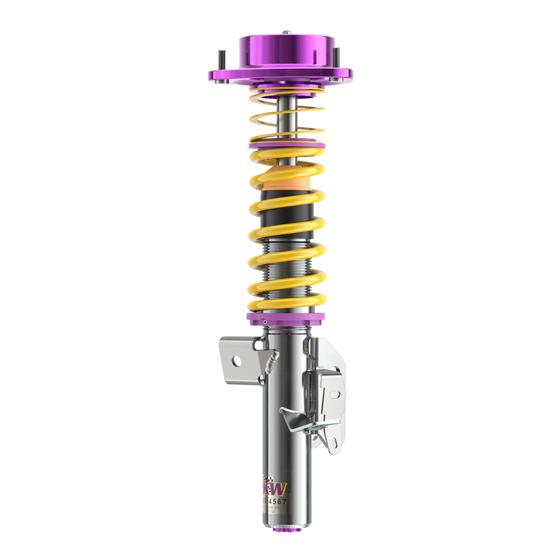

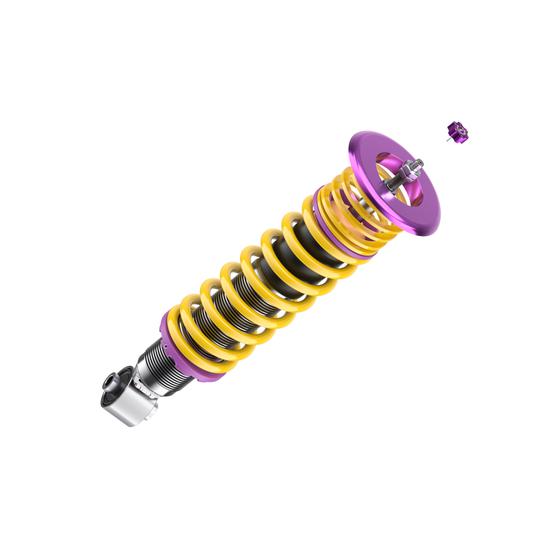

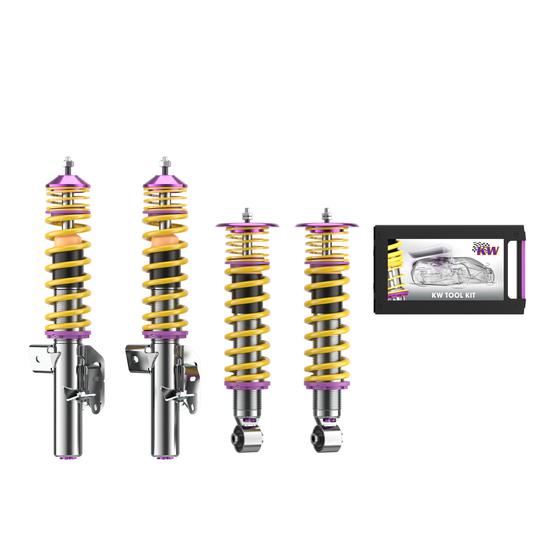

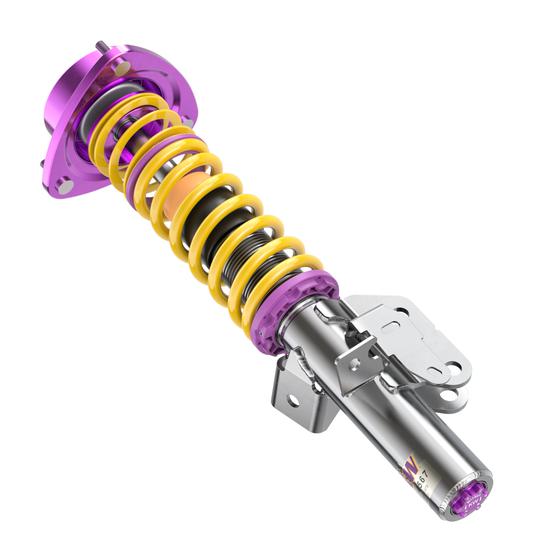

KW V3 Clubsport (CS) coilover suspension – 86 / BRZ
For ambitious drivers: Street and track combined in one setup.
What's inside?
-
KW coilover suspension – robust construction with stainless steel damper struts (“inox-line”> winterproof) and trapezoidal thread for uncomplicated lowering.
-
Separately adjustable rebound damping with 16 clicks , compression damping with 12 clicks.
-
Lowering is usually in the range of 20–50 mm at the front and 25–55 mm at the rear on the 86/BRZ.
-
Developed with motorsport technology & tested on the test bench and road – quality you can feel.
- Parts certificate (found here)

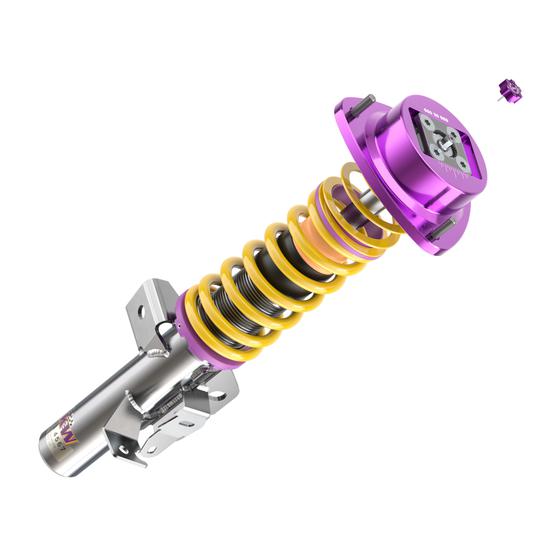

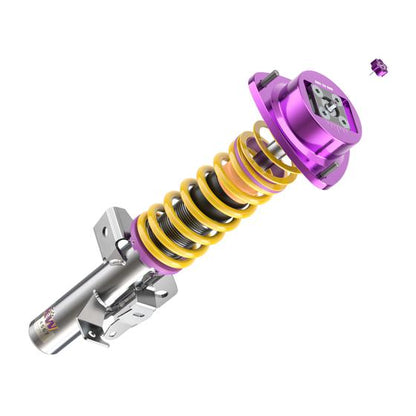

- Uniball top mount - front with camber adjustment
Comparison to other KW variants
| Model | Adjustability | Area of application | Special feature |
|---|---|---|---|
| V1 (Street Performance) | Lowered suspension, fixed damper settings | Everyday life & sports tour | Robust solution requiring no setup |
| V3 (Street Performance / Track-ready) | Lowering + adjustable rebound and compression damping | Everyday life with occasional track | More freedom of settings, somewhat more complex |
| V3 Clubsport / V4 Clubsport |
High-end track, advanced adjustment technology (e.g., high/low speed valves -> V4) (front) adjustable uniball top mounts |
Track tools & race track | Focus on performance, comfort secondary. |
Conclusion: If you're looking for a suspension system that performs very well on the track, are willing to sacrifice some comfort, and still need road approval, then this is the right place for you!
✅ Advantages of the V3 Clubsport in the GT86/BRZ
-
A clearly noticeable improvement in precision, lateral grip, cornering speed and driving dynamics – when correctly adjusted.
- Uniball top mounts are a game-changer – both in terms of performance and comfort. Professional wheel alignment after installation is crucial. And we're not necessarily talking about a chain like ATU. Only then will you get the maximum performance from your suspension and your vehicle.
-
High-quality materials ensure durability and resilience, even during athletic use.
-
Adjustable setup: If you have, for example, fitted wider tires or made additional modifications, the suspension can be fine-tuned accordingly.
⚠️ Possible restrictions
-
Potential loss of comfort: Those who primarily drive daily and prioritize comfort might find the setup too direct. The uniball top mounts, in particular, represent a noticeable loss of comfort, but a gain in directness to the car's handling.
-
Setup effort: To fully exploit the potential, expert knowledge or a setup partner is recommended.
🏁 Recommended use cases
-
You mainly use the 86/BRZ at its limit and drive a lot on the track, but also quite a lot on the road, and you want a balanced price/performance ratio.
-
You value quality, durability, and a manufacturer with a motorsport background.
Click here for the installation instructions.
Click here for the setup instructions.
