GreenFuchs x SKCustom | 10-row oil cooler with thermostat & air deflectors | GR86 & BRZ II

🥶 GreenFuchs × SK Custom – 10-row oil cooler with thermostats (80 °C & 90 °C)

Efficient oil cooling for Autobahn/Track but also for demanding everyday use

🔧 Technical facts

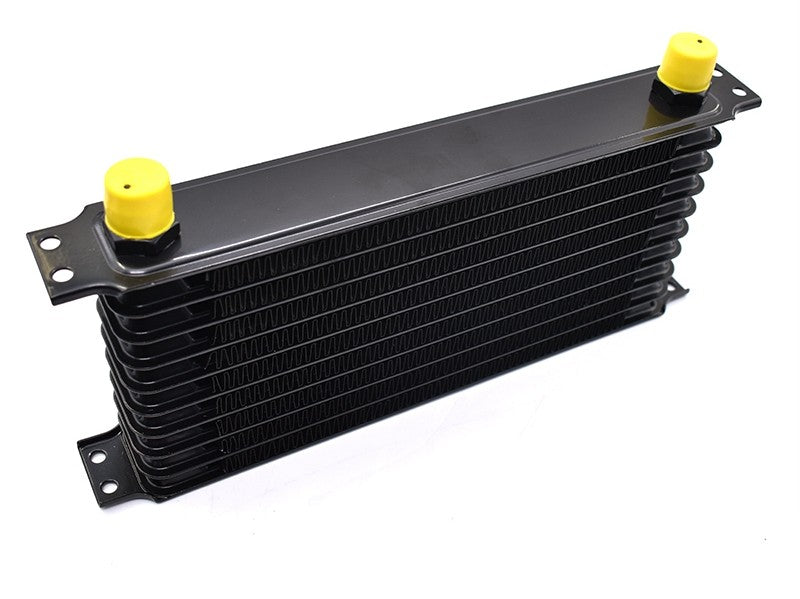

• Massive 10-row aluminum radiator (from SK Custom, exclusive to us)

• Interchangeable thermostats (80°C & 90°C) for precise temperature control (included in delivery, can be changed in 5 minutes). This allows you to switch between "Sport" (maximum early cooling) and "Daily" (later cooling to get the car up to temperature) as needed and used. Only with us, because we know that Toyubarus rarely have just one purpose ;)

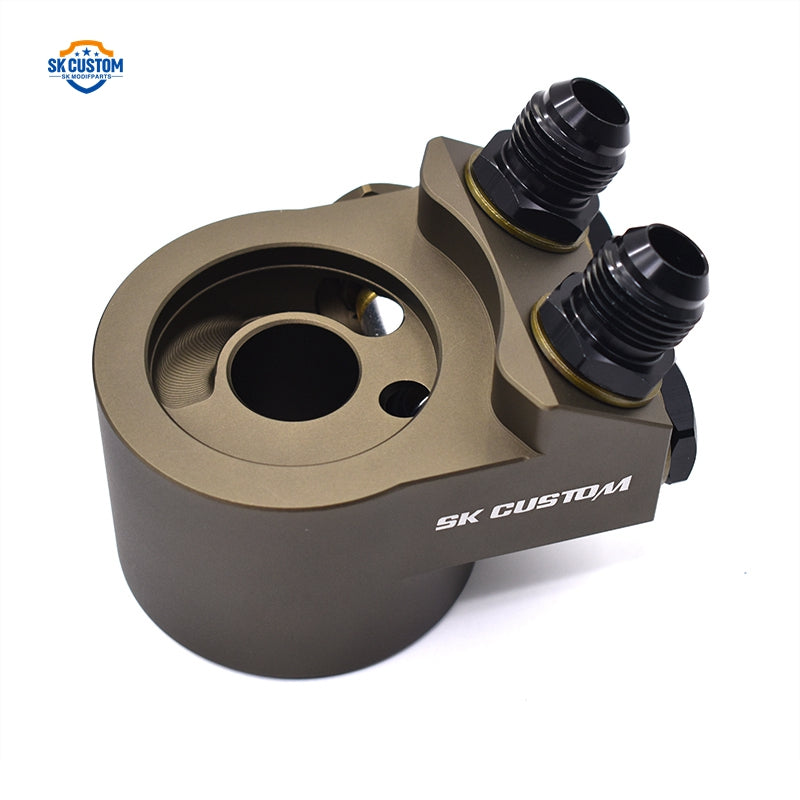

• 2 AN sensor connections for analog oil temperature or oil pressure sensors (e.g. for P3 display; sensors not included)

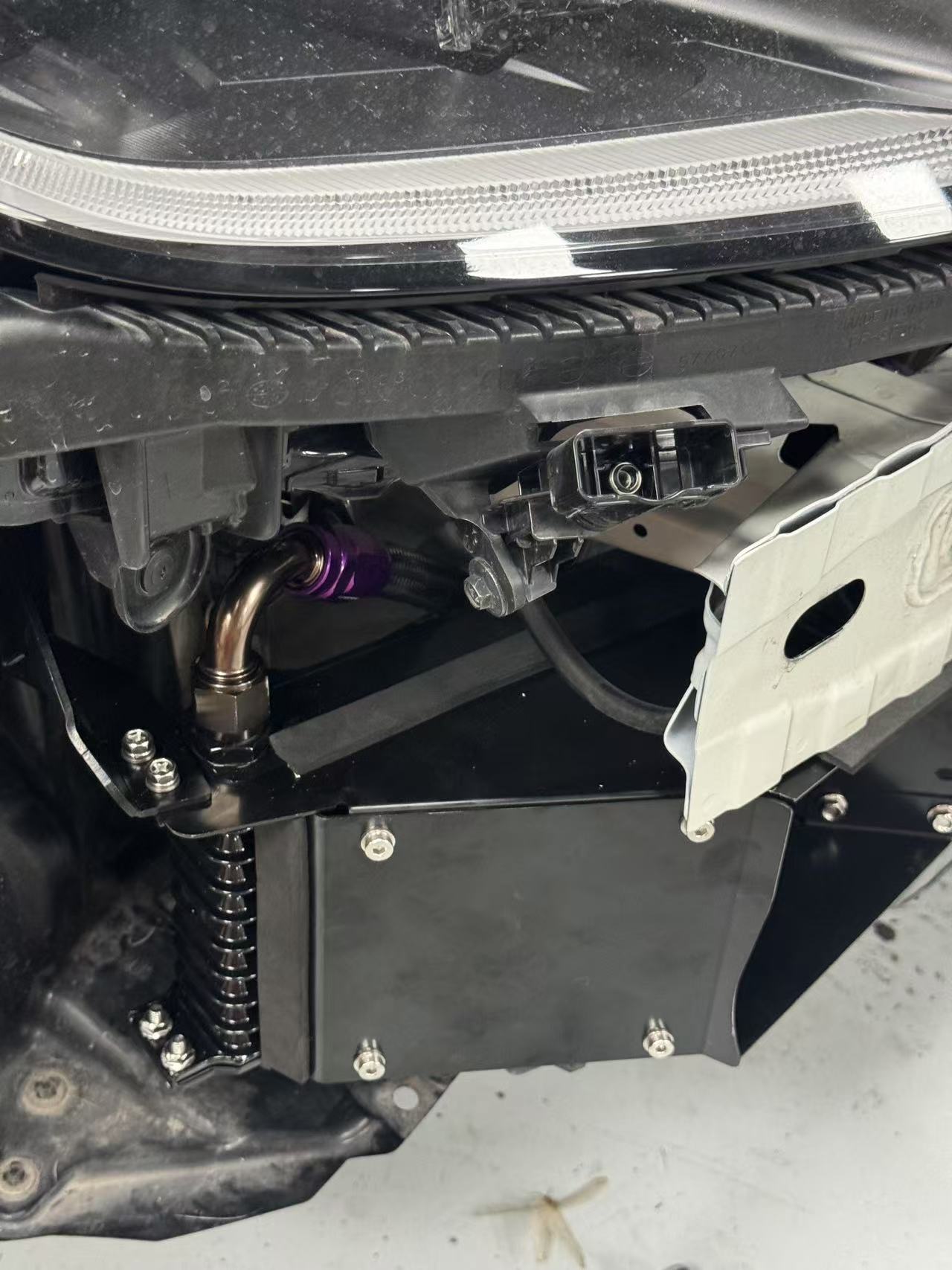

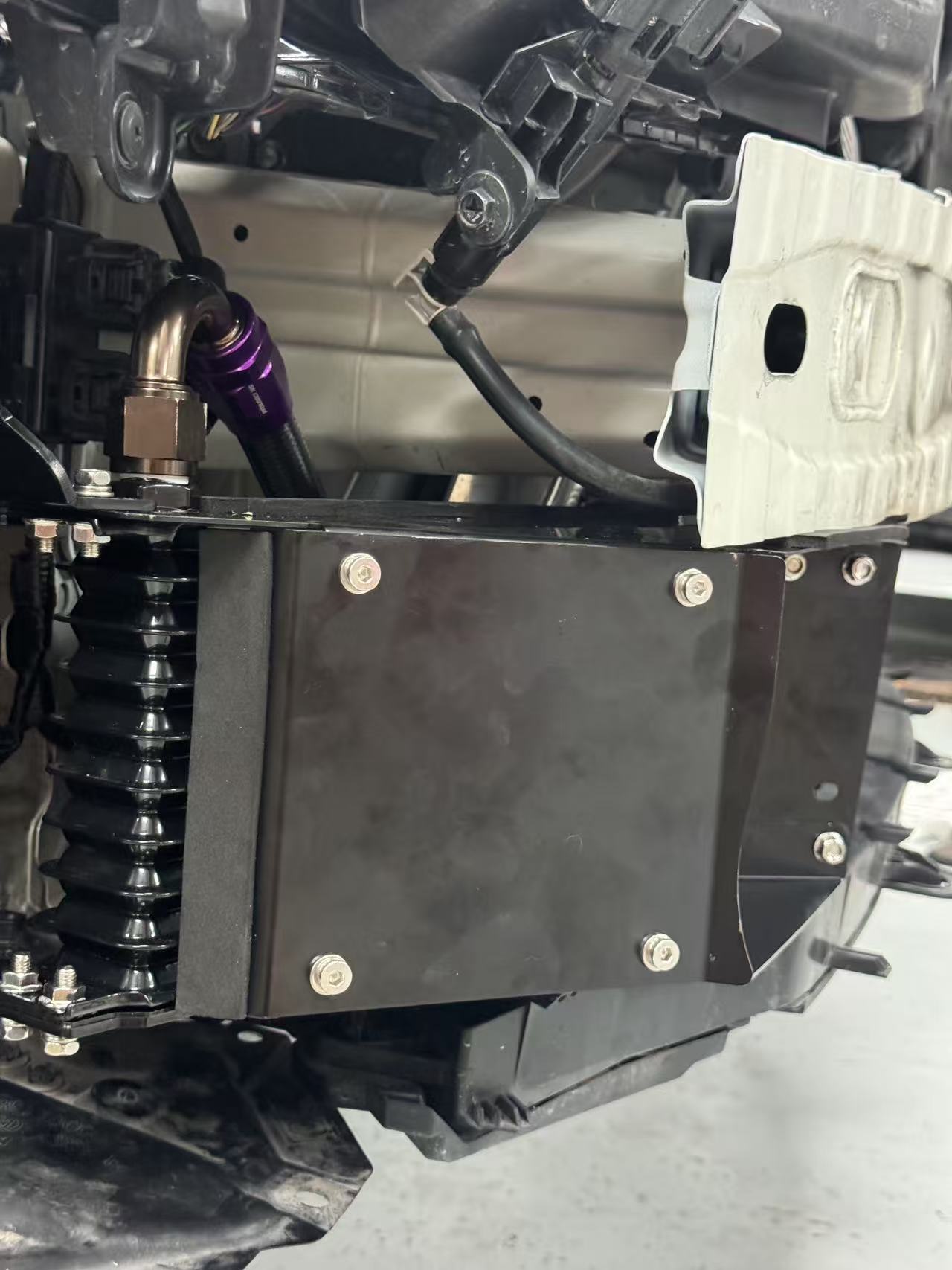

💡 Why air deflectors are crucial

Air deflectors optimize cooling performance by directing airflow through the radiator duct instead of simply letting it sweep past the sides. The result: under high loads (highways, cornering, serpentines), the oil temperature remains stable, even at slow speeds and in warm ambient conditions.

Without such baffles, a lot of air can escape unaccomplished – the cooler works less efficiently and the temperature rises unnecessarily .

🌡️ Why this is important for your GR86/BRZ

Especially in the FA20/FA24 boxer engine, oil temperatures of 110°C and above are known to occur under high loads – especially when using only low-viscosity 0W-20 oil. However, even 5W-30 only helps to a limited extent. Exceeding the 120°C mark causes viscosity to drop, and with it the lubrication performance – significantly increasing the risk of engine damage. Engine failure after a long stretch of highway or track with high oil temperatures is particularly common in this model, demonstrating the usefulness of an oil cooler.

✅ Advantages at a glance

1. Thermostat-controlled cooling – precisely prevents hypothermia and effectively protects

2. With black painted air deflectors – ensures defined airflow through the radiator – more effective at medium and high speeds

3. Sensor-Ready – external connections compatible with P3 Display & Co.

4. Exclusively customized version – original SK Customs core, optimized at GreenFuchs

🚗 Recommendation

Whether on long stretches of highway, sporty country road hunters or on the race track – anyone who wants to keep their oil temperature within safe limits will find an all-round high-quality system with real effectiveness in everyday life and sports use.

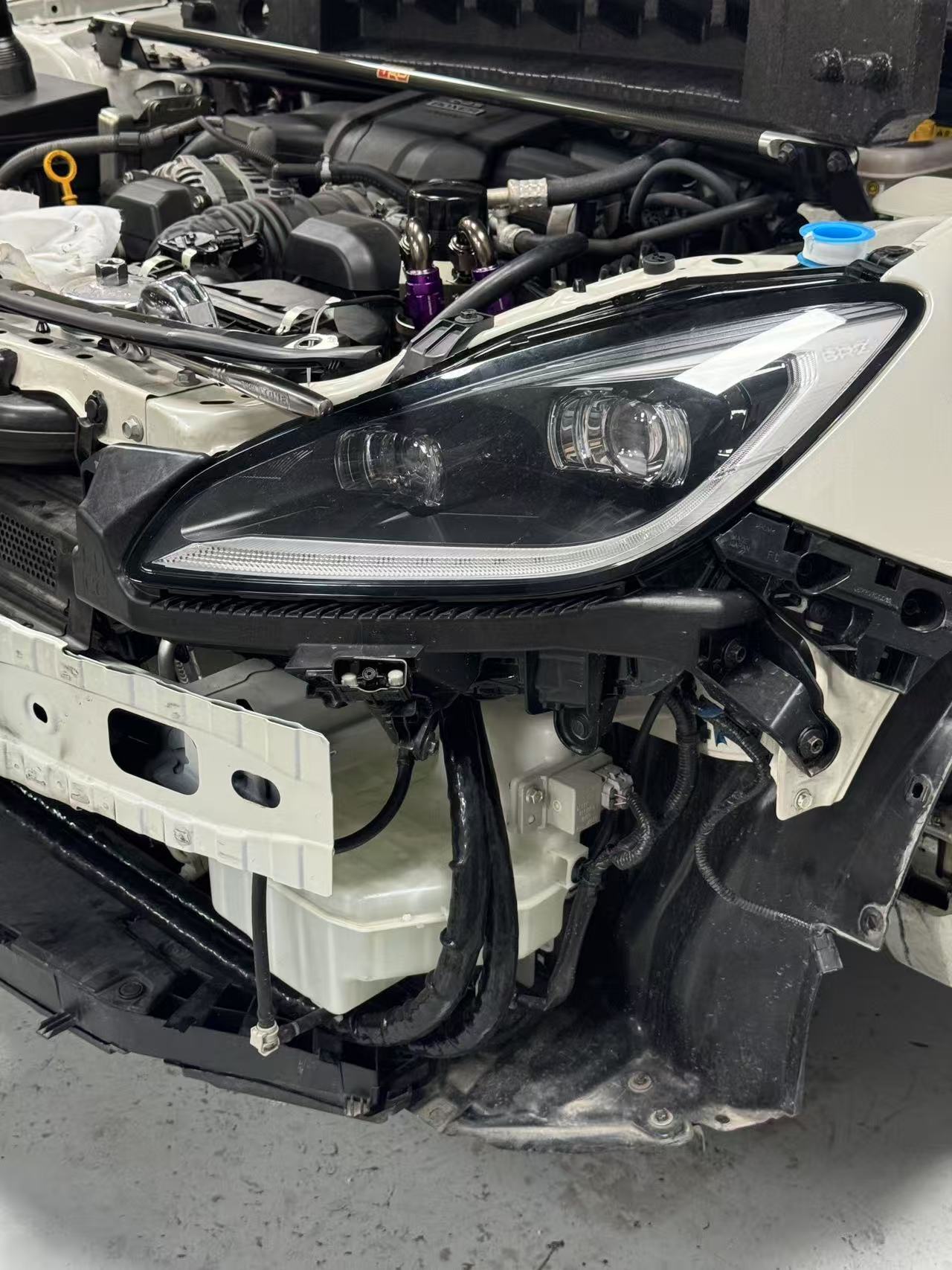

The grille is installed in the front of the wheel well on the GR86/BRZ II to create a clean path for the exhaust air. This is recommended for optimal airflow, but is not required.

Ordering information

We've been testing the product for several months now, and it's proven itself to be a success. However, we're currently working on the three instructions, which aren't finished yet! Therefore, we can only provide you with the pictures from the ad at the moment. No problem for DIY enthusiasts – novices should wait for our instructions before attempting installation!
